SMART IoT SOLAR STREET LIGHT
Edobo Smart IoT Solar Street Light integrates advanced solar technology with intelligent remote management, providing a reliable and energy-efficient lighting solution for roads, highways, parks, campuses, and industrial areas.

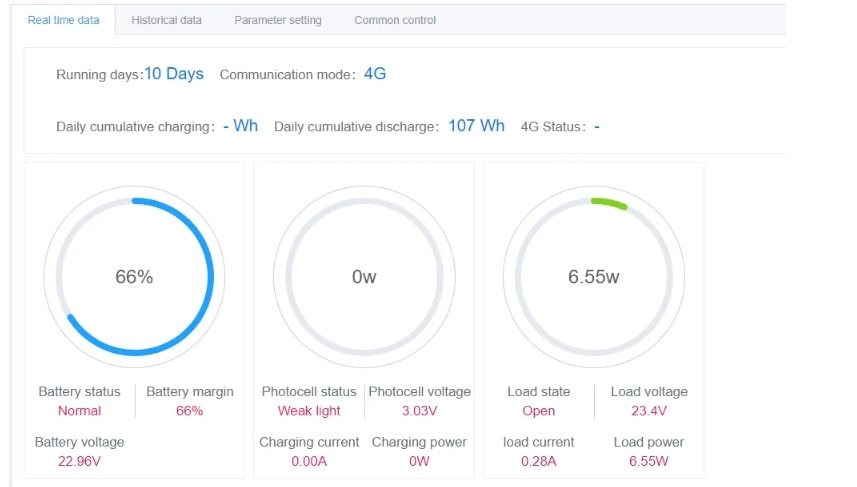

The system supports real-time monitoring of solar charging performance, battery status, and lighting operation through a centralized smart platform, helping improve maintenance efficiency and reduce operating costs.
Key Advantages
• Remote Monitoring & Control
Easily adjust brightness, operating modes, and lighting schedules anytime through smart management systems.
• Intelligent Fault Detection
Automatic alerts for low battery, abnormal charging, or lighting failures ensure stable and reliable operation.
• Energy-Efficient Performance
High-efficiency solar panels and intelligent energy management maximize lighting performance while reducing energy waste.
• Durable & Sustainable
Powered by clean solar energy with long lifespan components designed for harsh outdoor environments.
• Flexible Project Solutions
Suitable for smart cities, highways, municipal roads, parks, residential communities, and commercial projects.
Upgrade Your Outdoor Lighting with Smart Solar Technology
LED Lamp
High-brightness LED beads, Luminous efficacy:
200LM/W, CRI ≥70, lifespan ≥50,000hrs.
Multiple power options, customized acceptable.
Aluminum alloy shell with good heat dissipation,
light decay ＜ 3%.
Certified with CE, ENEC, ENEC+.
IP66 waterproof rated.
Solar Panel
PERC or TOPCON monocrystalline photovoltaic
panels are selected.
Conversion efficiency greater than 23%.
High generation efficiency, Aluminum alloy frame
and tempered glass material.
Service life of up to 25-30 years.
Battery
Lithium Iron Phosphate (LiFePO4) battery,
equipped with an intelligent BMS system.
Stable performance, over 3000 cycles lifespan.
Has MSDS, UN38.3, transportation appraisal
certificate and dangerous goods packaging
certificate.
Solar Controller
PWM and MPPT controllers are optional.
MPPT controller with higher charging efficiency
and better performance.
Smart light and time control: multi-dimming
modes, 40% energy saving.
Lamp Pole
Made of Q235 steel.Wind resistance: ≥150km/h.
Hot-dip galvanizing (zinc coating thickness ≥85μm)
and outdoor-grade plastic spraying protection.
ISO 12944 certified, salt spray/humidity/cross-cut
tested, meeting C5-M requirements.
No rust, no corrosion in harsh coastal conditions.
Basic Info.
| Model NO. | ED-light | Lamp Material | Aluminum |
| Power | 40W 60W 80W 100W 120W | Application | Square, Highway, Garden, Parking Lot, Road |
| IP Rating | IP66 | Certification | CB, CE, EMC, LVD, ENEC/ENEC+ |
| Input Voltage | 12V/24V | With Light Source | With Light Source |
| LED Chips Brand | CREE | Mounting Height | 6m,8m,10m,12m |
| Colortemperature | 2700-6500K | Lumen | 190lm/W |
| Solar Panel | 50W-300W | Rendering Index | Ra>75 |
| Voltage | DC 12V/24V | Battery | Lithium Ion Battery/Gel Battery |
| Transport Package | Carton & Pallet | Specification | Normal, Standard specification |
| Trademark | Edobo | Origin | China |
| Package Size | 800.00cm * 35.00cm * 35.00cm |
| Package Gross Weight | 120.000kg |
Wide Applications of Solar Street Lights
Solar street lights are widely used in various outdoor lighting projects due to their energy efficiency,
easy installation, and low maintenance requirements. Powered by solar energy, these lighting systems
provide reliable illumination without the need for grid electricity, making them ideal for both urban and
remote areas.
Solar LED street lights are commonly installed on city streets, rural roads, highways, parking lots,
parks, residential communities, industrial zones, campuses, and courtyards. They offer stable lighting
performance while reducing electricity costs and carbon emissions.
With waterproof construction, long-lasting lithium batteries, and intelligent controllers, modern solar street
lights can operate efficiently in different weather conditions. They are an excellent solution for municipalities,
commercial projects, residential areas, and off-grid locations worldwide.
Thoughtful Details, Better Experience
Multi-Layer Protective Packaging for Safe Transportation
Each solar street light is packed with bubble wrap and protective black cotton materials before shipment.
The multi-layer packaging effectively reduces the risk of scratches, paint damage and impact during
long-distance transportation, ensuring the products arrive in good condition.
Free Touch-Up Spray Paint Included
A matching spray paint bottle is provided with each shipment. If minor scratches or paint damage occur during
transportation or installation, customers can easily repair the surface and maintain a clean appearance.
Plug-and-Play Connectors for Easy Installation
The lamp, solar panel and battery are connected through clearly marked plug connectors. Users only need to
match the corresponding connectors during installation, which helps simplify wiring and avoid incorrect connections.
Foldable Anchor Cage Saves Shipping Space
The pole foundation anchor cage adopts a foldable design, which significantly reduces packaging volume
and saves container space. This design also helps lower transportation costs and improves loading efficiency.
High-Brightness LED Chips with Better Energy Efficiency
All our solar street lights use high-brightness LED chips to provide reliable illumination. Under the same power
conditions, the optimized lighting system helps improve energy efficiency and reduce power consumption.
How do solar street lights work?
Solar street lights convert sunlight into electricity through solar panels during the day. The energy is stored in lithium
batteries and used to power LED lamps automatically at night.
Can solar street lights work on rainy or cloudy days?
Yes. Most solar street lights are equipped with high-capacity batteries that can provide lighting for 2–5 consecutive
rainy days.
Are solar street lights waterproof?
Yes. Most outdoor solar street lights feature IP65 or IP66 waterproof ratings, making them suitable for rain, snow,
and harsh outdoor environments.
How many hours can a solar street light work at night?
Depending on battery capacity and sunlight conditions, solar street lights typically provide 8–12 hours of lighting every night.
Can solar street lights be used in remote areas without electricity?
Yes. Solar street lights operate independently from the power grid, making them ideal for rural roads, villages,
farms, and off-grid areas.
Where can solar street lights be installed?
Solar street lights are widely used on roads, highways, parks, parking lots, residential areas, industrial zones, campuses,
and rural communities.
What battery is used in solar street lights?
Most modern solar street lights use LiFePO4 lithium batteries because of their long lifespan, safety, and excellent
charging performance.
Can solar street lights be customized?
Yes. OEM and ODM services are available for wattage, battery capacity, solar panel size, pole height, and lighting modes.
Are solar street lights suitable for commercial projects?
Yes. Solar street lights are widely used in municipal roads, industrial parks, commercial areas, and government
lighting projects.
Can the solar panel angle be adjusted?
Yes. The adjustable solar panel design allows the panel to capture more sunlight and improve charging efficiency in
different installation environments.
What materials are used for the solar street light pole?
Most poles are made of galvanized steel with outdoor powder coating to provide excellent corrosion resistance and
long service life.
Can solar street lights work in high-temperature or cold regions?
Yes. High-quality solar street lights are designed to operate in various climates, including hot, cold, rainy,
and humid environments.
